BS1139 Adjustable Steel Prop Scaffolding D60 OEM Shore Prop Accessories

In construction projects, the formwork support structure for cast-in-place concrete typically uses steel shoring props to create a scaffolding system that supports brackets, working in conjunction with steel formwork for concrete placement.

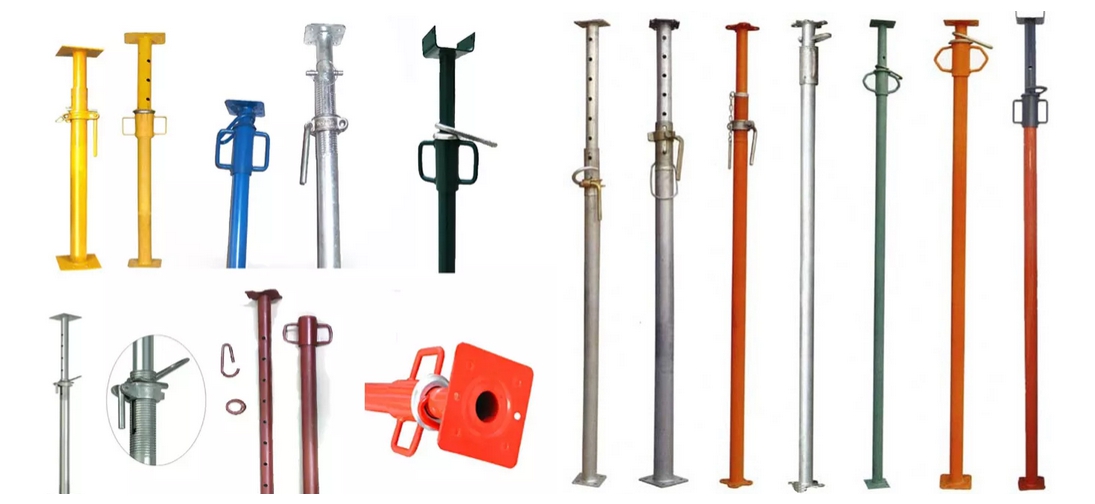

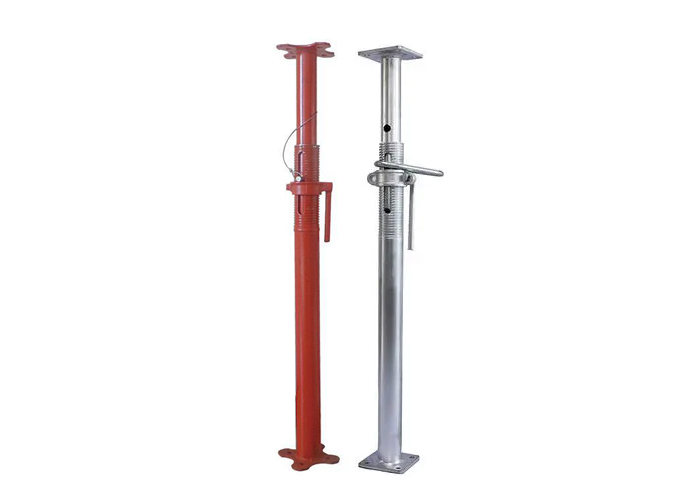

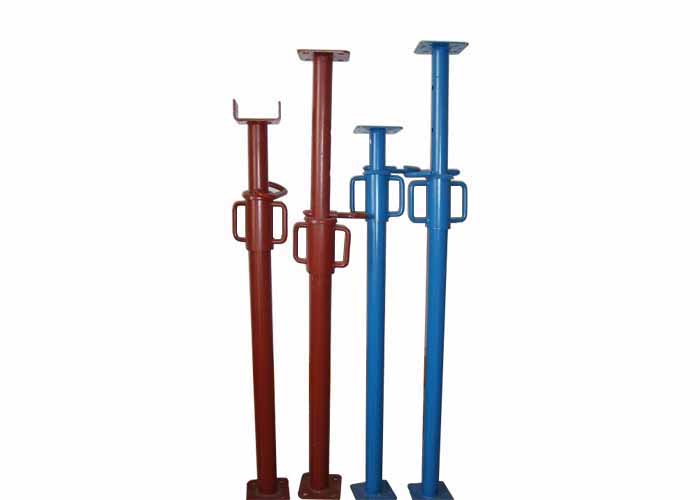

The Steel Adjustable Shoring Prop is a telescopic support system designed for propping up horizontal formwork. It can be adjusted to any length within its range, making it simple, flexible, and easy to install. The prop is constructed from an inner tube, outer tube, two plates, one nut, and one handle, resulting in a straightforward design that facilitates easy assembly and movement. Our Steel Adjustable Shoring Prop has a bearing capacity of 10-30 kN.

We can manufacture various types of steel props tailored to customer specifications, helping you save both time and materials.

Metal Formwork Push-Pull Prop Jack Post Scaffolding Support:

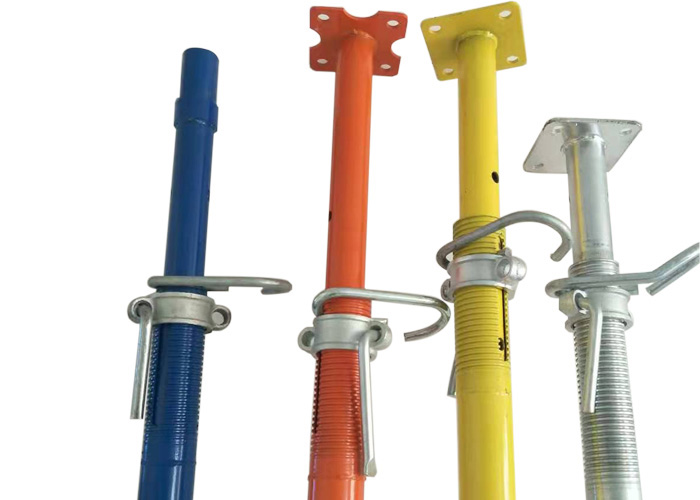

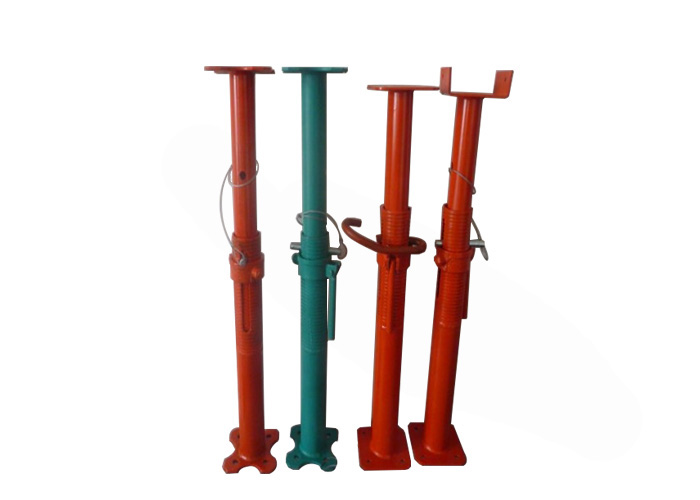

1. A complete set of steel props includes a top plate, base plate, inner pipe, outer pipe, sleeve, nut, and pin.

2. The steel prop is easy to assemble and disassemble due to its simple structure.

3. It can be adjusted to any length within its range and is reusable.

4. Widely used in propping systems for construction, plants, bridges, and more.

Material	Q235/Q245
Inner tube	φ48mm
Outer tube	φ56/60mm
Adjustable length	2200-4000/2500-3950/2200-2500/1550-2500/1250-1700/800-1250mm
Thickness	1.4-4.0mm
Color	Sliver/Golden/Orange/ Green/Blue/Red/Demand
Surface	Powder coated/Galvanized/Painted/
Process	Pressed

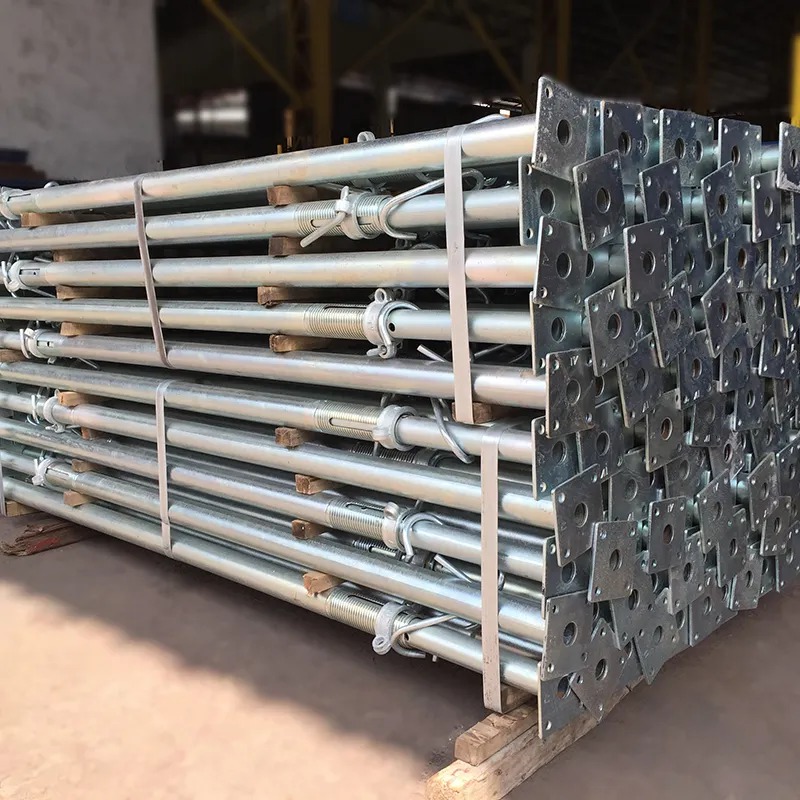

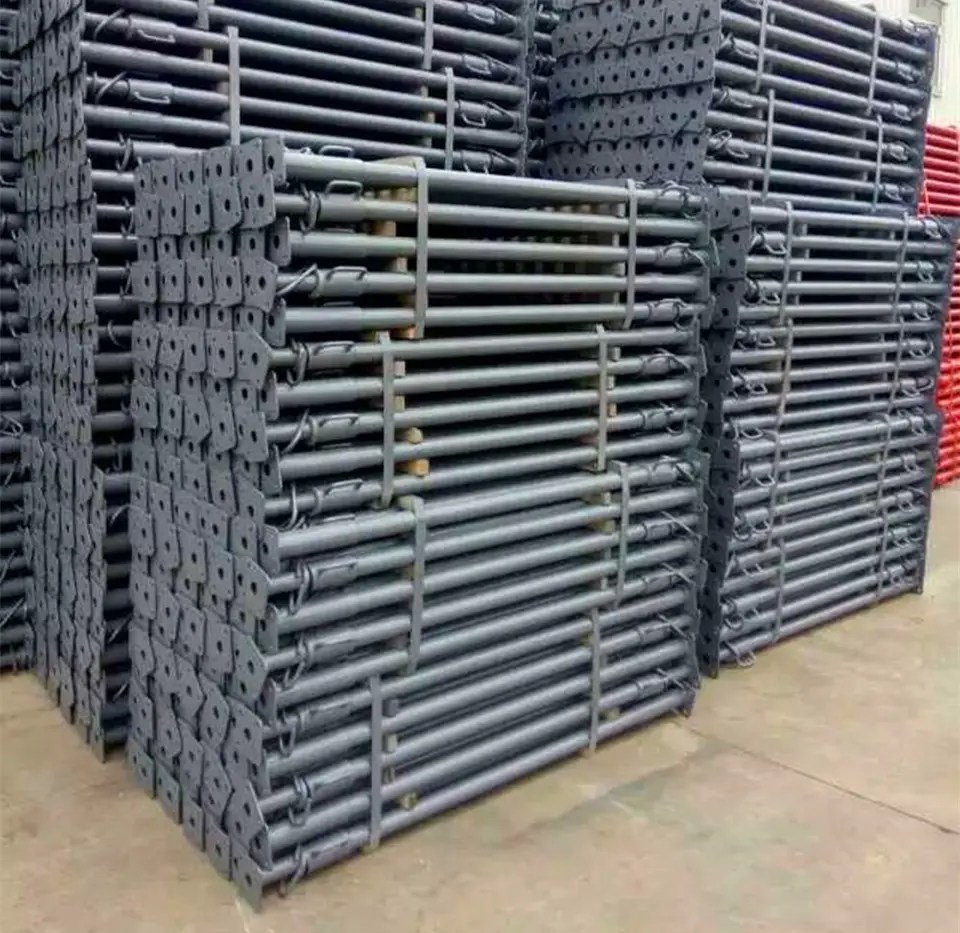

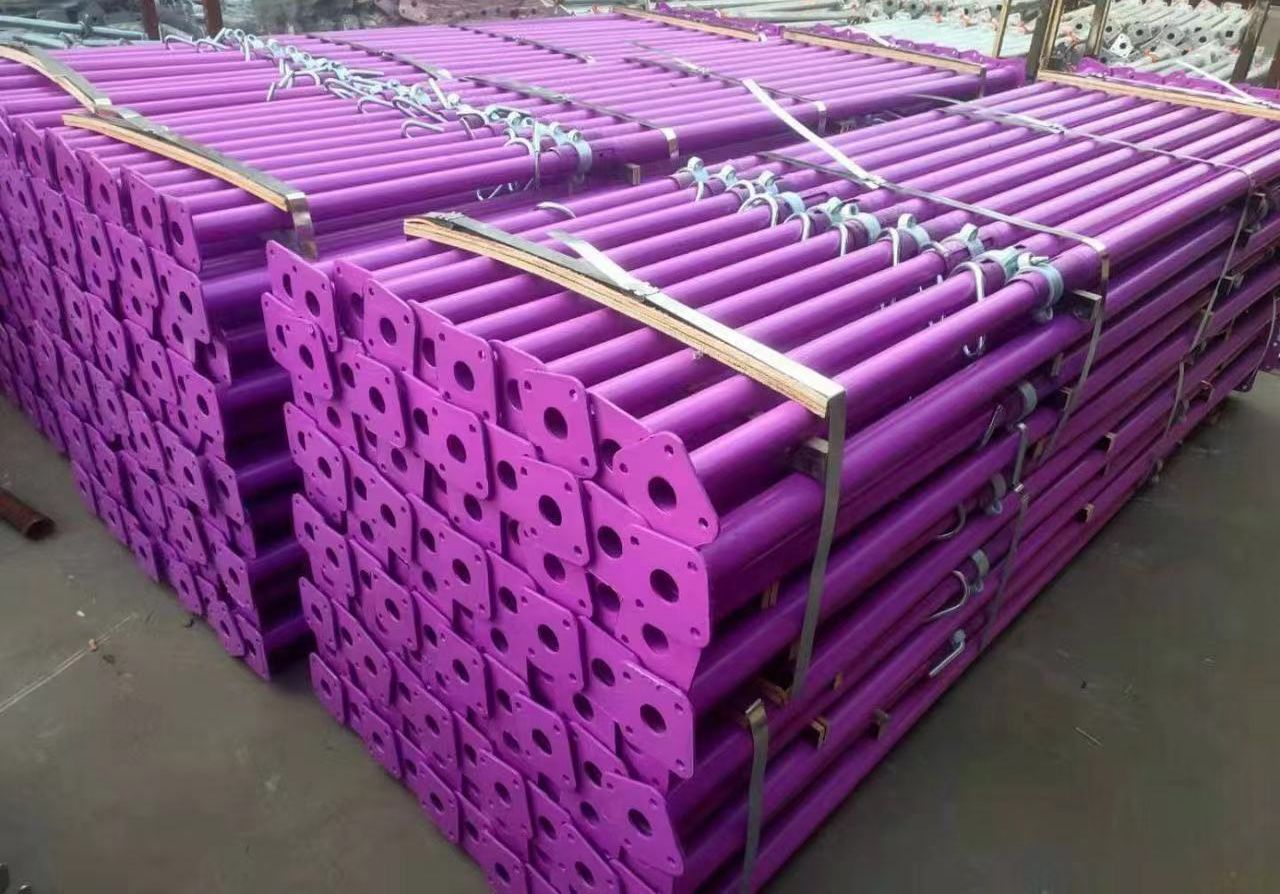

Package	In bundle or in bulk
